Stress-free transport your composite FM/MPX signal over an IP network.
IQOYA X/LINK-MPX
IQOYA X/LINK-MPX is the 1U rack IP codec that will ease your life when transporting an FM-MPX composite signal over IP networks: powerful and reliable, you can lean on our codec for your operations.
Flexible for enlarged applications
Analog or Digital MPX over IP
Reliable IP transport with FECs
Plus dual streaming and adjustable jitter buffer: what else?
Transmission hiccup free
No service interruption ever thanks to 2 backup levels for decoding on transmitter sites (backup IP MPX stream, sound files /playlists on SDHC card)
µMPX compression for a low IP bitrate
From 320 to 576 kbps
Key features
Analog (BNC) and Digital (XLR) MPX Inputs and Ouputs
Optional µMPX compression
Dual streaming, FEC and 2 backup levels
4 Ethernet (management, AoIP on LAN, WAN streaming)

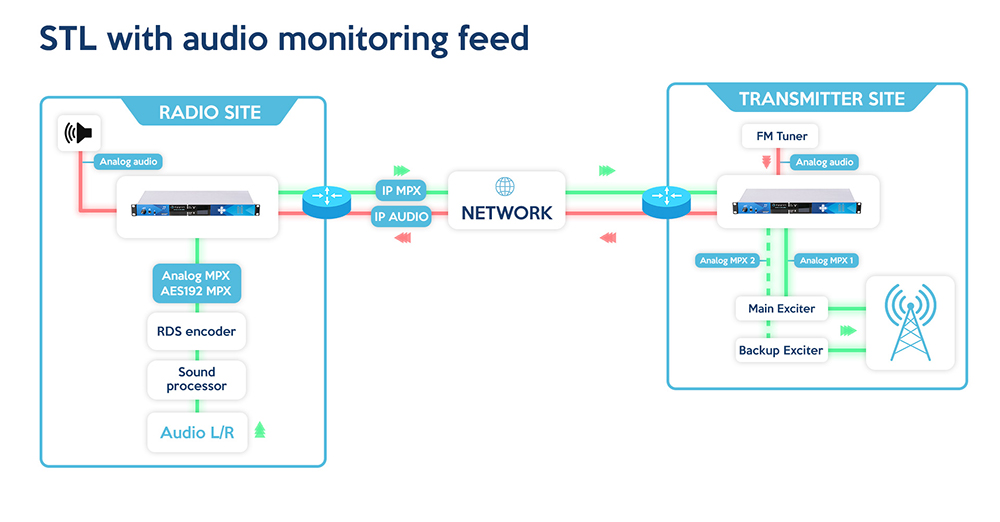

Workflow
Specifications

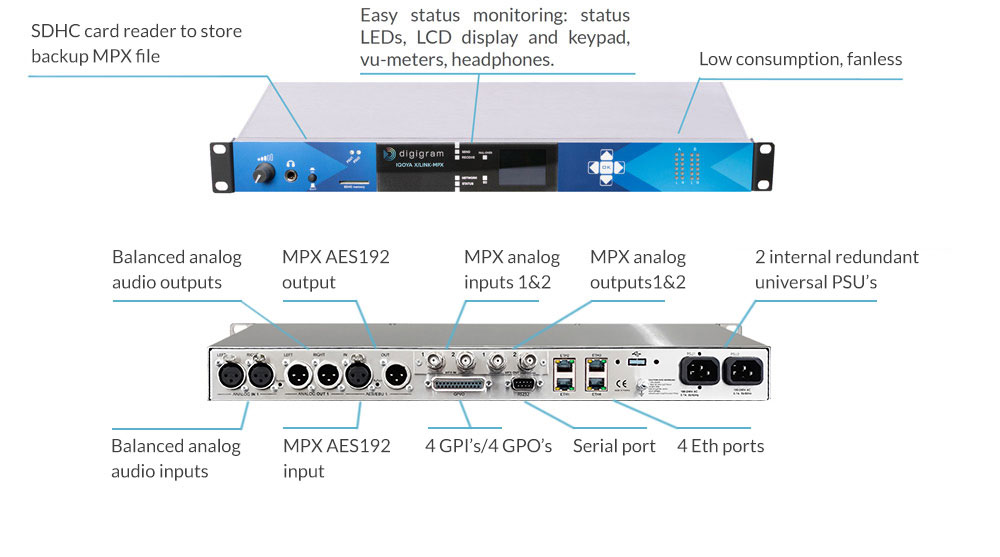

Connectivity
- MPX
2 analog inputs & outputs on BNC, max +15 dBu
1 AES192 MPX input and output - Line audio
2 analog inputs & outputs, XLR, +24 dBu max - Network ports
3 Gbps / 1 x 100 Mbps, RJ-45 - Auxiliary data
1 RS232 – 4 GPIOs
Technical specificities
- Dual internal power supply units
- Duplicated MPX outputs with independent levels adjustment for exciters redundancy
- Return IP audio monitoring stream
- Tunneling of auxiliary data
- 2 backup MPX sources in decoding
Backup sources are: MPX IP stream (compressed or uncompressed), MPX file stored on an SDHC card inserted from the front panel - Fanless, low consumption
- Front panel LCD display and keypad
- Front panel headphones (6.35mm female jack)
- Front pane SDHC card reader
Benefits
Transport your MPX signal and get a monitoring IP audio stream from your transmitter sites and get return monitoring audio streams from the transmitter sites.
Lower your CAPEX: no need for sound processors, RDS and stereo encoders at transmitter sites.
Easy integration into existing SNMP based supervisors (SET, GET, Traps)
Lower your OPEX: less power consumption, less space required, and less maintenance operations at transmitter sites.
