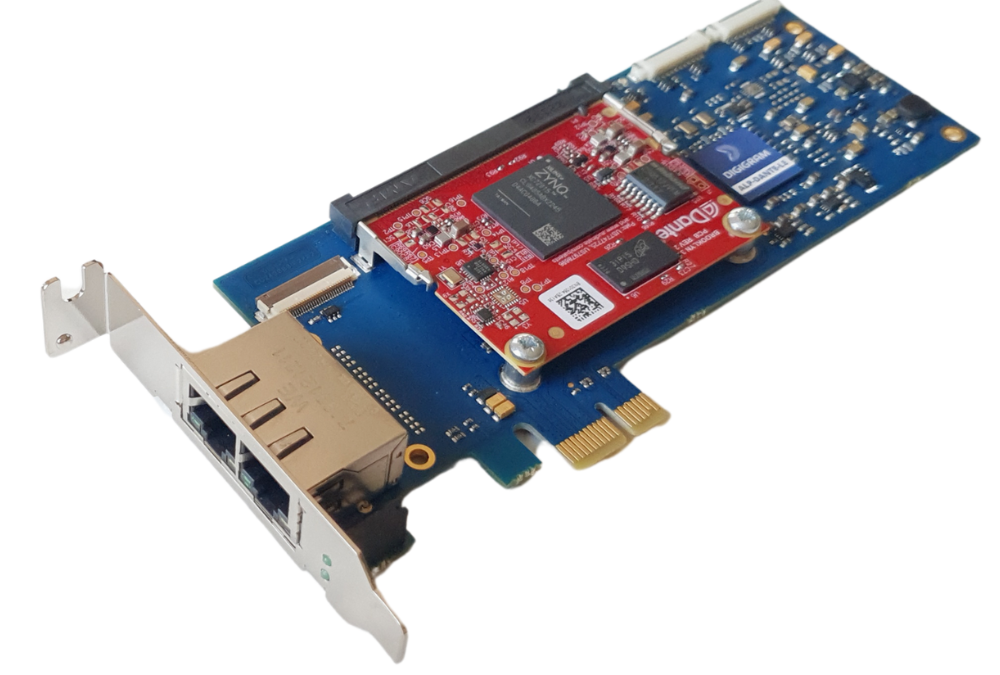

ALP-­DANTE-LE

PCIe ALP-DANTE-LE audio interface has just the right features you need, no more and no less: versatility, reliability, untouched audio quality, plus cost-effectiveness.

Its low-profile form-factor design matches all PCs and servers to address applications in the broadcast, public safety, medical, transportation, or industry markets. Its fanless design reduces consumption and increases the card’s durability and sustainability.

Drivers for Windows

The “ALPX-kit” package for Windows allows installing the following components:

• Driver with Wasapi interface
• ASIO driver with its ASIO control panel (CPL) (32-bit and 64-bit ASIO)
• Digigram ALP-X Manager application (I/O levels, I/O routing matrix, clock selection,…)

The supported Windows flavours are :

• Windows 10 from version 20H2, Windows 11, and higher versions
• Windows Server 2019, Windows Server 2022, and higher versions

The ALPX-kit for Windows and its release notes are available for download at the bottom of this page.

Linux

ALP cards are supported under the following Linux distributions, from the mentioned versions:

• Ubuntu:
  ver. 20.04 – kernel 5.15
  ver. 22.04 – kernel 6.5
• Debian 11 – kernel 5.10
• Debian 12 – kernel 6.1
• RHEL 9 kernel 5.14

In case you need to run the driver under another Linux distribution, please contact Digigram to get the source code. If  you experience issues for compiling / running the driver on your Linux distribution, we propose a service to provide you with the appropriate driver; please contact Digigram.
